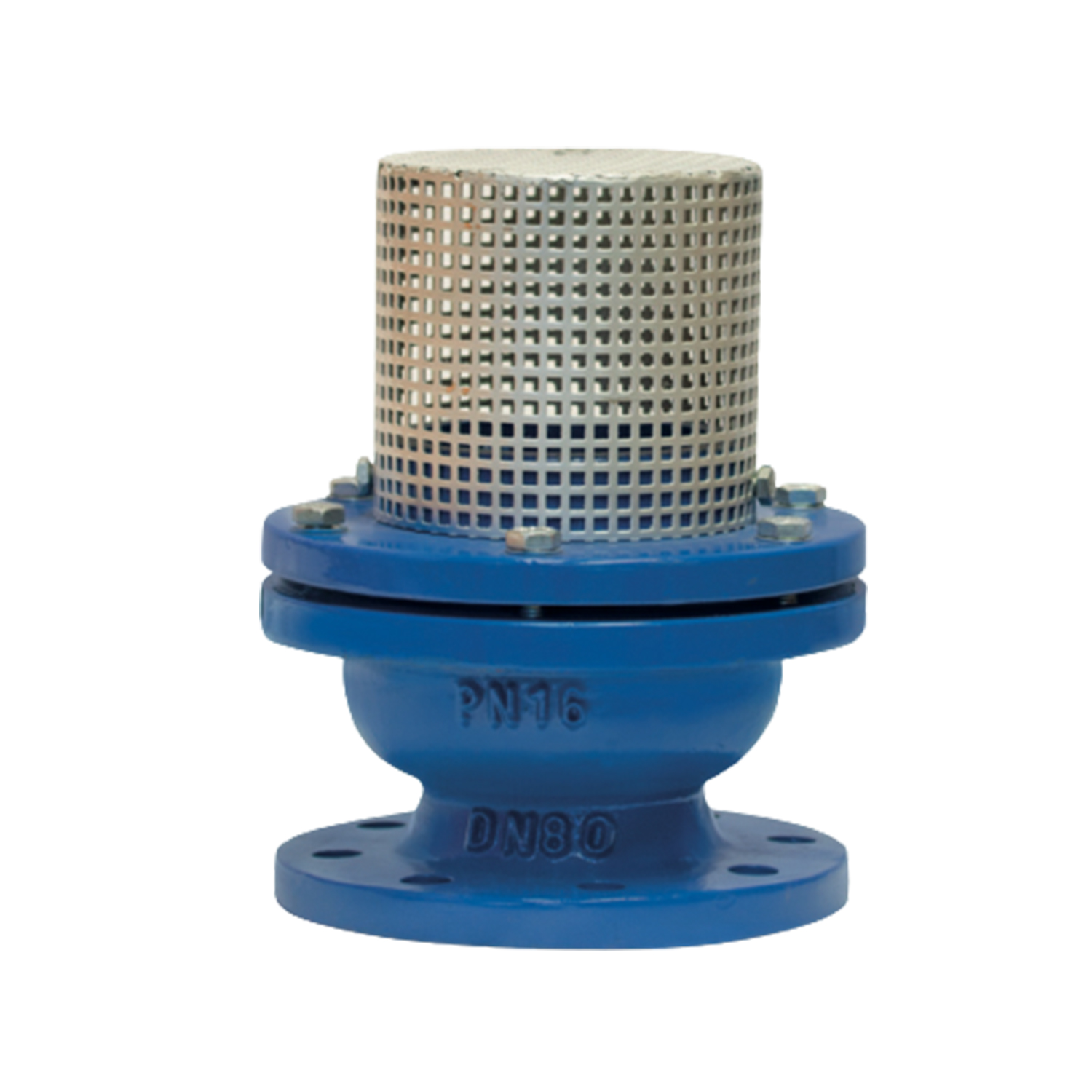

MV-760 FOOT VALVE

Production Standards
Size Range DN40 – DN600
Pressure Range PN10 – PN16
Connection EN 1092-2 ISO 7005 Flanged
Marking EN 19
Tests EN 12266-1
Coating Industrial Epoxy
Temperature +130 °C



Category:

Description

Product Features

  • Spring Check Valve and Filter Combination design
  • Spring check valve prevents back-flow and discharge of the pipeline
  • Filter prevents residuals from entering the pipeline and harming the pump.
  • Minimal head-loss due to %10 larger flow area than pipe size
  • Long service life at low and high pressures.
  • Optimize pumping efficiency.

Application Areas

  • Suction Lines
  • Tanks & Reservoirs
  • Sea water Applications
