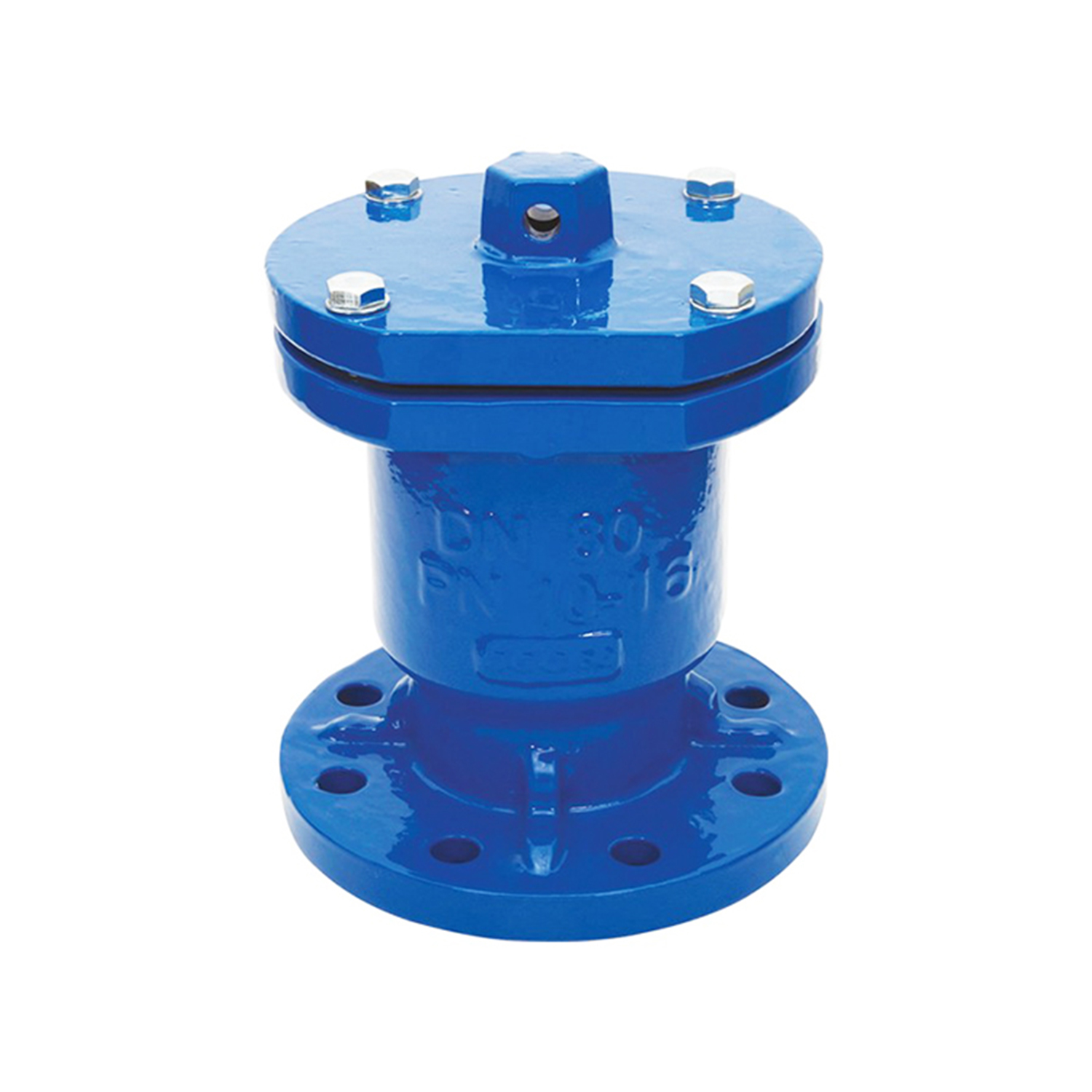

MV-200 SINGLE ORIFICE AIR RELEASE VALVE

Production Standards
Size Range DN50 – DN200
Pressure Range PN10 – PN16
Design EN1074-4
Connection EN 1092-2 ISO 7005-2
Marking EN 19
Tests EN 12266
Coating Electrostatic Powder Epoxy
Temperature +130 °C



Category:

Description

Product Features

  • Float parts made of polyethylene which increases the corrosion resistance.
  • Do not have vacuum function.
  • Body and cover of ductile iron with flanged connection.
  • Fully coated body and bonnet meets the hygienic requirements of the potable water networks.
  • During pipeline services, it enables the air accumulation and discharge out of pipeline.
  • Working pressure range 0.2 – 16 bar.

Application Areas

  • Water transmission
  • Water distribution
  • Pump suction line
  • Peaks and bottom points
  • Next to by-pass valve

E-Catalogue
