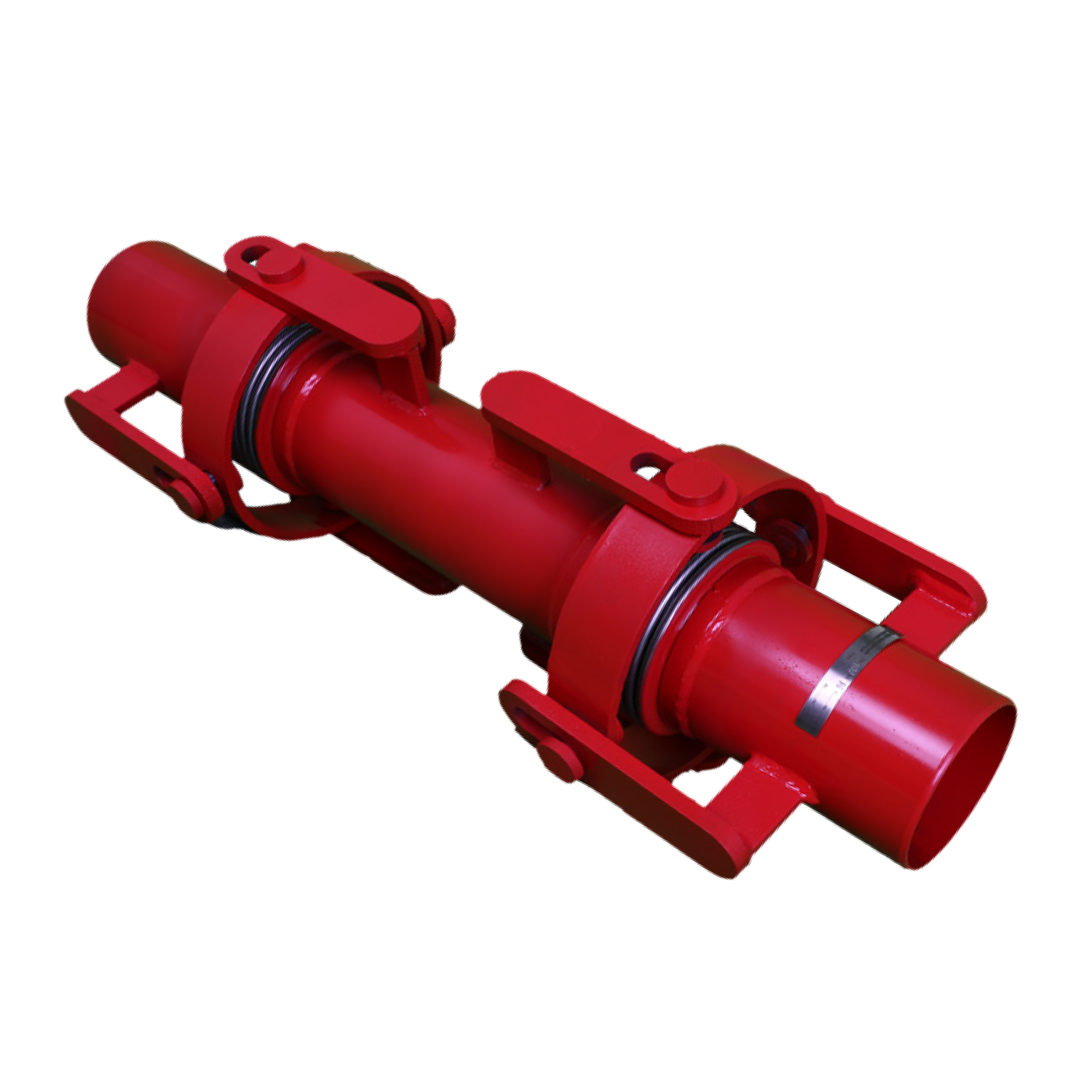

MV-670 ANGULAR EXPANSION JOINT

Production Standards
Size Range DN25 – DN250
Pressure Range PN10 – PN16 – PN25 – PN40
Design EN 14917 & EJMA
Connection EN 1092-2 / ISO 7005-2 Rotating Flanged, Fixed Flanged, Welding End
Face to face EN 14917
Marking EN 19
Tests EN 12266-1
Temperature -10°C to +550 °C
Expansion Range X: 100mm., YZ: 100-200-300-400mm.



Category:

Description

Product Features

  • Reduces number of fixed points and roller bearings
  • Can absorb lateral or angular movements in all axis
  • Protects the pipeline from earthquakes and collapses
  • High movement capacity for large temperature differences
  • Designed for high temperature usage
  • Better flexibility for piping layout
  • Eliminates pressure instability
  • Pressure balance by bellows prevent twists on the pipeline.

Application Areas

  • Hot and Cold Water Systems
  • Potable Water
  • Fire Lines
  • Superheated water
