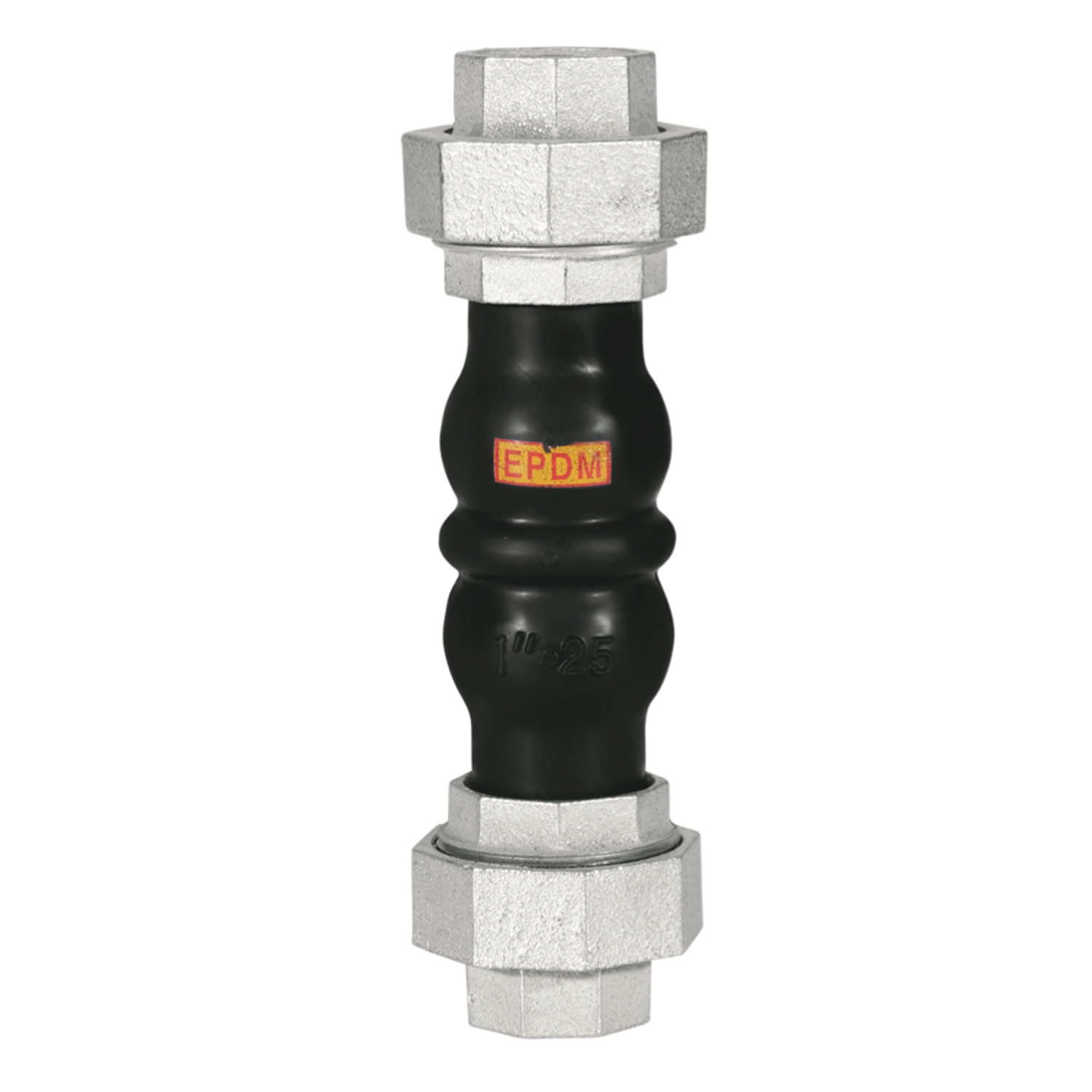

MV-620 FLEXIBLE RUBBER JOINT THREADED
| Production Standards |
| Size Range |
DN15 – DN100 |
| Pressure Range |
PN10 |
| Design |
DIN 30680 |
| Face to face |
DIN 30680 |
| Marking |
EN 19 |
| Tests |
EN 12266-1 |
| Corrosion Protection |
Galvanized Threads |
| Temperature |
+100 °C |
Description
Product Features
- Body made of EPDM with carbon steel ends.
- Maximum pressure 10 bar. depends on nominal size and temperature.
- Threaded ends, double sphere.
- Absorbs vibration and reduces tension on the pipeline.
- Sound reduction because of imbalances on the pipeline.
- Reinforced rubber with nylon based cord.
- Can manage lateral, angular, torsional movement.
- Vibration reduction due to the hydraulic surge and water hammer.
- Absorbs elongations and contractions due to temperature differences.
- Easy to install and light weight design does not create extra weight on the pipeline.
- Vertical installation is recommended for a longer operational life.
- Maintenance free.
Application Areas
- Hot and Cold Water Systems
- Cooling towers
- HVAC Applications
- Pumping Stations
- Waste water medium
